KTR precision joints

Joints with plain and needle bearing

  • Joints Type G/H without keyways or with one keyway

  • Joints Type GD/GH without keyways or with one keyway

  • Joints Type G/H with different bore

  • Standard Extensible transmission GA Series

  • Special joints GR Series with quick release

  • Protection Muff

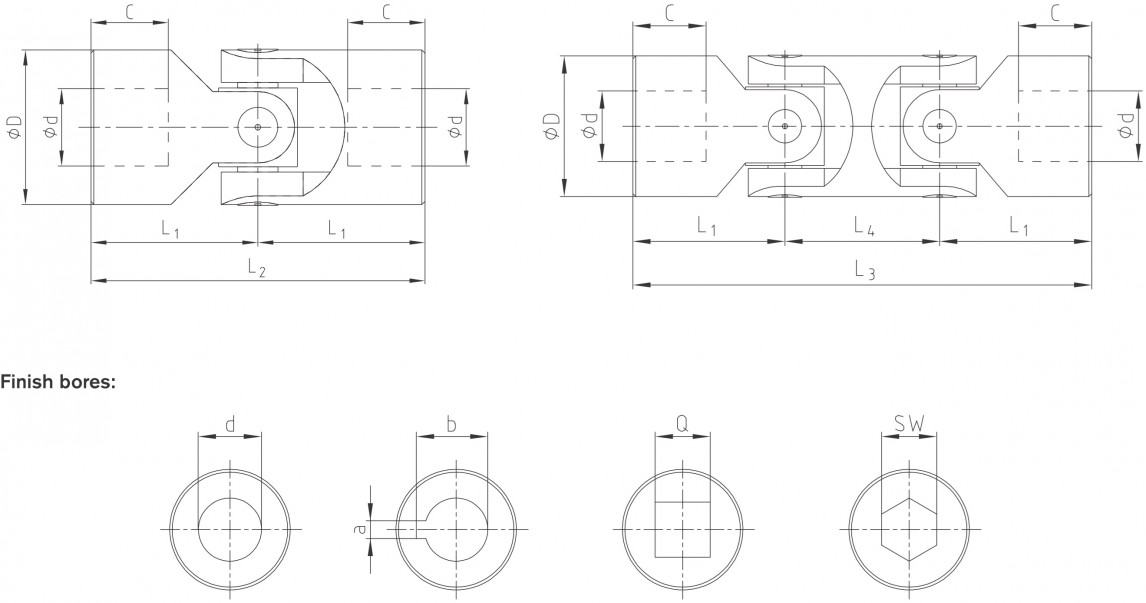

TYPE G / GD (According to DIN 808 with plain bearing),
TYPE H / HD (According to DIN 808 with needle bearing),
TYPE X / XD (According to DIN 808 with plain bearing made of stainless steel 1.4301):

TYPE G and GD
Size G Size GD d [H7] D L2 L1 C L4 L3 a [JS9] b Q[H10] SW[H8]
01 G 01 GD 6 16 34 17 8 22 56 2 7,0 6 6
02 G 02 GD 8 16 40 20 11 22 62 2 9,0 8 8
03 G 03 GD 10 22 48 24 12 26 74 3 11,4 10 10
04 G 04 GD 12 25 56 28 13 30 86 4 13,8 12 12
05 G 05 GD 14 28 60 30 14 36 96 5 16,3 14 14
1 G 1 GD 16 32 68 34 16 37 105 5 18,3 16 16
2 G 2 GD 18 36 74 37 17 40 114 6 20,8 18 18
3 G 3 GD 20 42 82 41 18 47 129 6 22,8 20 20
4 G 4 GD 22 45 95 47,5 22 50 145 6 24,8 22 22
5 G 5 GD 25 50 108 54 26 55 163 8 28,3 25 25
6 G 6 GD 30 58 122 61 29 68 190 8 33,3 30 30
6 G1 6 GD1 32 58 130 65 33 68 198 10 35,3 30 30
7 G 7 GD 35 70 140 70 35 72 212 10 38,3 - -
8 G 8 GD 40 80 160 80 39 85 245 12 43,3 - -
9 G 9 GD 50 95 190 95 46 100 290 14 53,8 - -
TYPE H and HD
Size H Size HD d [H7] D L2 L1 C L4 L3 a [JS9] b Q[H10] SW[H8]
03 H 03 HD 10 22 48 24 12 26 74 3 11,4 10 10
04 H 04 HD 12 25 56 28 13 30 86 4 13,8 12 12
05 H 05 HD 14 28 60 30 14 36 96 5 16,3 14 14
1 H 1 HD 16 32 68 34 16 37 105 5 18,3 16 16
2 H 2 HD 18 36 74 37 17 40 114 6 20,8 18 18
3 H 3 HD 20 42 82 41 18 47 129 6 22,8 20 20
4 H 4 HD 22 45 95 47,5 22 50 145 6 24,8 22 22
5 H 5 HD 25 50 108 54 26 55 163 8 28,3 25 25
6 H 6 HD 30 58 122 61 29 68 190 8 33,3 30 30
6 H1 6 HD1 32 58 130 65 33 68 198 10 35,3 30 30
7 H 7 HD 35 70 140 70 35 72 212 10 38,3 - -
8 H 8 HD 40 80 160 80 39 85 245 12 43,3 - -
9 H 9 HD 50 95 190 95 46 100 290 14 53,8 - -
TYPE X and XD
Size X Size XD d [H7] D L2 L1 C L4 L3 a [JS9] b Q[H10] SW[H8]
01 X 01 XD 6 16 34 17 8 22 56 2 7,0 6 6
02 X 02 XD 8 16 40 20 11 22 62 2 9,0 8 8
03 X 03 XD 10 22 48 24 12 26 74 3 11,4 10 10
04 X 04 XD 12 25 56 28 13 30 86 4 13,8 12 12
1 X 1 XD 16 32 68 34 16 37 105 5 18,3 16 16
3 X 3 XD 20 42 82 41 18 47 129 6 22,8 20 20
5 X 5 XD 25 50 108 54 26 55 163 8 28,3 25 25
6 X 6 XD 30 58 122 61 29 68 190 8 33,3 30 30

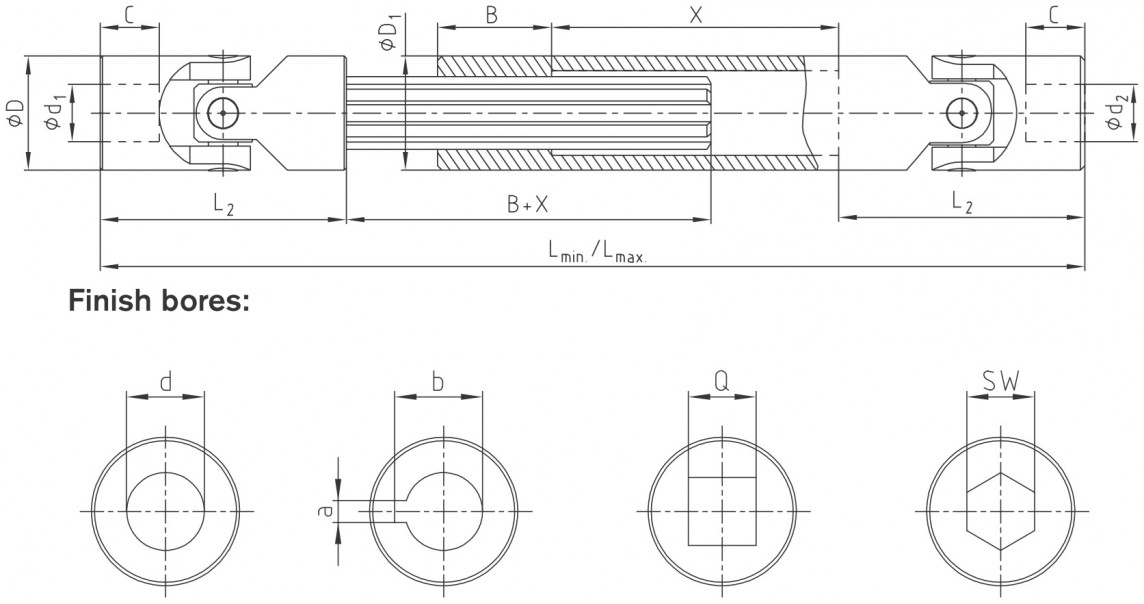

TYPE GA / HA (According to DIN 808 with plain and needle bearing (extendable)):

TYPE GA and HA
Size GA Size GH d1, d2 [H7] D D1 L2 Lmin. / Lmax. - Preferred lengths C B Spline shaft (B+X) a [JS9] b Q[H10] SW[H8]
01 GA - 6 16 16 34 - - - - - - - - - 8 25 SW8 2 7,0 6 6
02 GA - 8 16 16 40 - - - - - - - - - 11 25 SW8 2 9,0 8 8
03 GA 03 HA 10 22 22 48 140/170 160/200 180/240 230/330           12 30 11x14 Z6 3 11,4 10 10
04 GA 04 HA 12 25 26 56 160/190 180/225 200/270 220/300 250/300 280/420 300/450     13 40 13x16 Z6 4 13,8 12 12
05 GA 05 HA 14 28 29 60 170/200 180/220 200/260 220/300 250/350 280/420 300/450 350/550 400/650 14 40 13x16 Z6 5 16,3 14 14
1 GA 1 HA 16 32 32 68 190/220 210/250 240/320 250/350 275/390 300/430 380/590 400/630   16 40 16x20 Z6 5 18,3 16 16
2 GA 2 HA 18 36 37 74 230/280 250/320 270/370 290/400 300/415 400/620 500/820     17 40 18x22 Z6 6 20,8 18 18
3 GA 3 HA 20 42 42 82 250/300 270/340 290/380 320/440 380/560 420/640 500/800     18 45 21x25 Z6 6 22,8 20 20
4 GA 4 HA 22 45 47 95 250/280 270/320 290/350 330/430 350/470 470/710       22 50 23x28 Z6 6 24,8 22 22
5 GA 5 HA 25 50 52 108 295/345 310/375 350/450 380/500 420/590 460/660 500/745     26 50 26x32 Z6 8 28,3 25 25
6 GA 6 HA 30 58 58 122 330/380 350/420 370/455 400/510 450/620 500/720 540/795     29 60 32x38 Z8 8 33,3 30 30
7 GA 7 HA 35 70 70 140 - - - - - - - - - 35 70 36x42 Z8 10 38,3 - -
8 GA 8 HA 40 80 80 160 - - - - - - - - - 39 80 42x48 Z8 12 43,3 - -
9 GA 9 HA 50 95 95 190 - - - - - - - - - 46 90 46x54 Z8 14 53,8 - -

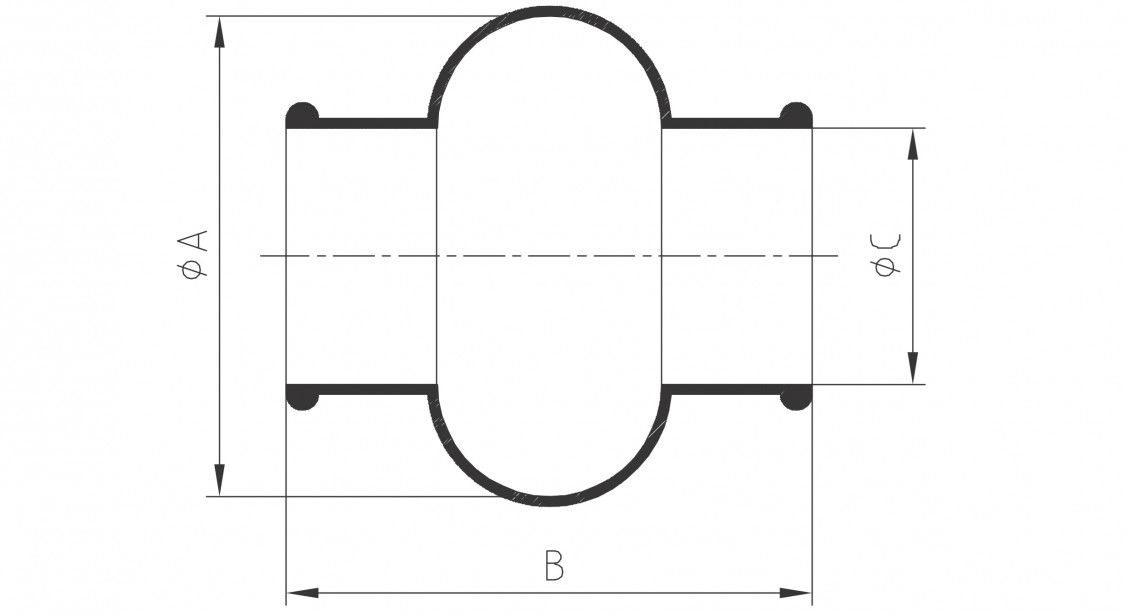

PROTECTION MUFF:

PROTECTION MUFF
Size Precision joints A B C
M 01 01 G, 01 X 28 34 15
M 02 02 G, 02 X, 02 GR 32 40 16,5
M 03 03 G, 03 H, 03 GA, 03 HA, 03 X, 03 GR, 03 HR 40 45 20,5
M 04 04 G, 04 H, 04 GA, 04 HA, 04 X, 04 GR, 04 HR 48 50 24,5
M 05 05 G, 05 H, 05 GA, 05 HA, 05 GR, 05 HR 52 56 27,5
M 1 1 G, 1 H, 1 GA, 1 HA, 1 X, 1 GR, 1 HR 56 65 30,5
M 2 2 G, 2 H, 2 GA, 2 HA, 2 GR, 2 HR 66 72 35,5
M 3 3 G, 3 H, 3 GA, 3 HA, 3 X, 3 GR, 3 HR 75 82 40
M 4 4 G, 4 H, 4 GA, 4 HA, 4 GR, 4 HR 84 95 45
M 5 5 G, 5 H, 5 GA, 5 HA, 5 X, 5 GR, 5 HR 92 108 50
M 6 6 G, 6 G1, 6 H, 6 H1, 6 GA, 6 HA, 6 X, 6GR, 6 HR 100 122 56
